The CapeSoft Draw control allows you to draw directly to an image control. Not only is this fast, but has the added advantage that if the control is refreshed, it simply redraws the image, rather than re-calling each of drawing commands. And it allows:

• Individual pixels to be modified, which is great for per pixel effects
• Faster special effects drawing.
• Images can be saved in either BMP or PNG formats, and with the new DrawImage functionality (which utilizes the Clarion FreeImage library available from Clarionfreeimage.com) images can be loaded and saved to and from JPEG, BMP, TIFF, PNG, PCX and a large number of additional formats.
• Real-time animation in a standard Clarion image control.
• Very fast redraws.
• All commands are drawn directly to a buffer.
• Advanced drawing functions that easily allow you to achieve complex effects.
• Multiple layers, and transparency types.

Draw now supports multiple drawing surfaces, otherwise known as layers. Some of the features include:

• Layers can be any size (not necessarily the same as the image control).
• Layers can be hidden, which means you that can have hidden drawing surface that can be used as off-screen buffers.
• Pixels can be copied in blocks of any size from any layer to any layer, with full control over the exact size and location of the block.
• Any layer can be drawn directly to the image control.
• Drawing to a layer is as simple as selecting the layer using the WithLayer() method and then calling the Draw methods normally;
• Each layer supports index transparency (a single color can be selected as transparent).
• In addition each layer can have an associated alpha layer, which allows soft transparency effects. Alpha layers can store three separate channels of alpha information, which can be associated with any number of layers.
• See the section on layers for more information.

And best of all the upgrade to Draw 2 from previous versions is free!

This section briefly describes what's new in the current release, and important information when upgrading from older versions.

Draw 4.22

The DRAW class has been renamed to DrawClass. This is to resolve a compatibility issue originating in Clarion 11.0.13622
Users on this build of Clarion (or later) will need to be on Draw 4.22 or later. This will also trigger the following other accessory updates;

• DrawShot (1.09 or later)
• HotDates (2.00 or later)
• Insight Graphing 2 (2.34 or later)
• Progress (1.35 or later)
• NetTalk 10 (10.41 or later)
• NetTalk 11 (11.44 or later)
• RightReports (2.04 or later)
• SendTo 3 (3.39 or later)

Although iDash uses Draw, it uses a derived class, not the DRAW class, so does not need to be updated.
NetTalk 9 and earlier did not use Draw, so are not affected.

Draw 4.00

Added the DrawGauge class and template support for gauges.

Draw 2.64

Updated DrawHeader template and added a new DrawHeader Class.

The DrawHeader no longer uses the local procedure, and the Utility templates are no longer needed. The new options on the Global extension allow the old template to be used (tick the Use Old Drawheader template option), and also allows all settings for the DrawHeader object to be overridden at the template level. The local extension provides the same settings, and allows the global settings to be overridden where needed.

DrawHeader control can use the new or old template code as needed, simply tick the box for control that should use the old DrawHeader template code, and use the Global extension to specify whether the old of new template should be the default.

Draw 2.55

Updated DrawHeader template
For projects using the DrawHeader template run the DrawHeadingABC or DrawHeadingLegacy utility template to import the update DrawMakeHeading function into your application. This release adds resizing support and the ability to redraw the control without recreating the icon.

Draw 2.30

Major new features include handling of Complex Script languages such as Arabic and Hebrew (see the new Show() method documentation for more) as well as Right-To-Left text ordering etc., support for curve drawing. See the History section for more.

Draw 2.13

Draw and Progress Compatibility
Draw 2.13 and Progress 1.14 both have template changes that make them incompatible with the previous versions of the products, so please ensure that you upgrade both products to Draw 2.13 and Progress 1.14 or later!

Draw 2.07

Important: Because the equates that draw uses now all begin with 'Draw:', compiling programs that use version prior to 2.07 may produce errors, in order to fix these errors simply add the text 'Draw:' to each equate used in your source code. This mainly affects the internal drawing methods, as a number of the API equates now have Draw: prepended to the label (e.g. LOGPIXELSX becomes Draw:LOGPIXELSX). Most of the Draw equates already use the Draw: naming scheme. Only a very small number of equates have been changed, so it is unlikely that you will comes across this error.

See the History section for a full list and for features added in previous releases.

Your questions, comments and suggestions are welcome. See our web page (www.capesoft.com) for new versions. You can also contact us in one of the following ways:

CapeSoft Support
Email
Telephone	+27 87 828 0123

Run the supplied installation file.

If you need to save images as PNG files you need to ship the cs_libpng.DLL and the zlib.DLL files. These will be in your application folder, or if not, in the \clarion\accessory\bin folder.  Cs_libpng.DLL and zlib.DLL are linked at runtime. If they are not present Draw will simply not allow PNGs to be written.

If you are using the Barcode method to create PDF417 compatible 2D barcodes then you need to ship the Barcode.DLL file.

If you are using the FreeImage functionality then you will need to ship the FreeImage.DLL as well. Please note that you will need to comply with the FreeImage License if you ship this DLL.

If you are using the QR Code functionality then you will need to ship QRCodeGen.DLL.

This product includes the FreeImage DLL and is included here under the terms of the FIPL.

This product includes the LibPng DLL and is included here under the terms of the Libpng License.

This product includes ZLIB and is included here under the terms of the Zlib License.

This product includes QRCodeGen.DLL and is included here under the terms of the MIT license.

Keen to get started? Or just don't like wading through all the documentation? This section is just for you - the basics on how to get Draw working as quickly and simply as possible.

This jump start will show you how to place a Draw control on a window and draw a red rectangle into the control. The completed app is in the /examples/Draw4/JumpStart/ directory in you Clarion directory (QuickDraw.app is the ABC version and QuickLegacy is the Legacy version).

• Create a new application (or open an existing one).
• Select a procedure with a window that you would like to place the Draw control on (create one if necessary), right click the procedure name and choose "window" to open the window formatter.
• Go to the Control Template pad, and choose Draw from the section Draw. Then click on the window to add the Draw control to the window. Resize the Draw control - you can make it any size you like.
• Right click on the Draw control and choose "Actions".
  Change the name of the object to "drawer". Click OK
•  Place a button on the window and change the text to read "Blank".
  Right click on the button and choose "embeds" . In the "Control Events" section, double click on "Accepted" and choose "Source". Type the following code into the embed:

  drawer.Blank (color:white)
  drawer.Display()

  The first line of code clears the Draw layer to white, the second line then write resultant pixels to the image control. Each time you call the Draw methods you need to call Display() to update the image control. Click "Exit" to leave the embeditor (click Yes when it prompts you to save your work) and close the embeds window.

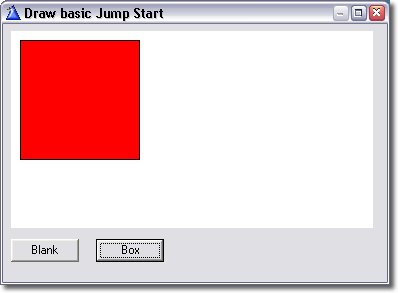

• Place a second button on the window with the text "Box". Follow the same steps as above, except this time use place the following code in the Accepted embed:

  drawer.Box(10, 10, Random(80, 200), Random(80, 200), color:red)
  drawer.Display()

  This will draw a red box with the top left hand corner at (10, 10) and a width and height of between 80 and 200 pixels. Again exit the embeditor and save you work. You can now exit the window editor, save the application, compile and run it. You may notice that the box has a black border, you can set the pen color that is used to draw line by calling the SetPenColor() method.
• Try adding the following code before the call to drawer.Box():

  drawer.SetPenColor (Random( color:black, color:white))

  You can also try out the setpenwidth() method to set the line thickness.

  For more advanced examples see the Examples section.

Useful Information:

Methods use in the quickstart

Blank() - clears the current layer to the color specified
Display() - writes all visible layers to the image control
Box() - Draws a rectangle
Setpencolor() - sets the current pen color (used for drawing lines and borders)

Layers

In the above example we completely ignored the fact that Draw supports multiple layers. When the Draw object is first created it creates a layer and sets it as the active layer, so it is possible to simply ignore the fact that a layer is being used. Layers allow a huge amount of flexibility and power, see the section on layers for more information.

Lines and Fills

In addition to setting the pen and fill colors, Draw also supports patterned fill and pens. See SetFill() and Setpenstyle()

Shading

As well as supporting simple shapes like boxes, lines and ellipses Draw has methods that create shapes with complex color shaded fills for boxes, cylinders, ellipses and even shaded lines.

Adding a Draw Control to your window is easy:

• (Optional) Add the global extension template for Draw. Go to the Global Properties Dialog box in you application, selection extensions, then insert the GloDraw extension.
• Open the window editor for the window;
• Place an image control on the window;
• Select CapeSoft Draw Control from the template populate box;
• Right click on the control and choose 'actions', here you can customize the Draw control's settings, such as giving the object a name - see Options for the Draw Control.

The global extension is used to enable Draw in your application and also allows you to disable all Draw code, primarily for debugging. From Beta 11, Draw uses runtime DLL linking for writing to PNGs, see the section on Distribution for the DLL required for PNG writing.

Draw provide options on the global extension to make using it in multi DLL applications simple.
Draw is exported from the Data DLL, and then used in the other apps in your system as required.

Data DLL App

1. Add the Draw Global extension
2. On the Multi-DLL tab tick on both options.

Other Apps (DLLs and EXEs)

1. Add the Draw Global Extension
2. On the Multi-DLL tab tick on ONLY the first option. (DLL's will default to this being on, but EXE's need it explicitly set.)

Setting the Object Name

Under 'actions' in the control properties box you can set the object name. This is the object whose methods you will call to do the actual drawing. All examples in this document use the object name "Drawer".

Setting the Class Name

You can also set the class that Draw uses to create objects, this allows you to modify or replace the Draw class with your own customized version with a different name. If you do this please remember to add your own .clw to the project (under "external source files").

Don't generate this Draw Object

This option works similarly to the option on the global template "Don't generate Draw code", rather than disabling all draw code globally, this option allows you to disable any generated code for this object only.

IMPORTANT: The origin of the Draw control is the top left corner and is (1,1). See the image below.

Draw uses pixels throughout rather than dialog units. There are a number of reason behind this, however the primary one is that for drawing pixels is the natural unit of measurement, as whatever is drawn will eventually be rendered in pixels. Changing the font or font size used for a window will not affect Draw at all, unlike other controls which will be affected by the change in dialog units. Using pixels also ensures that there are no rounding errors that result in inaccurate drawing. In addition you can do calculations far more accurately than the screen can render and simply pass the Rounded values to Draw.

You can convert from dialog units to pixels - to get the current number of pixels per dialog units (this is likely to be a fraction, not a whole integer):

pixPerUnit real   ! A variable to store the number of pixels per dialog unit.
curUnits   byte   ! The current "mode" that is being used (either pixels or DLUs).
  code
    curUnits = target{prop:pixels} ! Store the current unit setting.
    target{PROP:Pixels} = 0 ! Set to DLUs instead of pixels.

    ! Calculate the current pixels per dialog unit using the DLU measurement
    ! and the stored pixels measurement.
    pixPerUnit = self.width/self.control{prop:width}
    target{prop:pixels} = curUnits ! Restore the units setting.

Notes on getting started.

Unlike the Clarion drawing functions, the Draw control does not display the result as each function is called, you need to call the Draw.Display() method to update the Draw control. Before drawing, you can call the Blank method to erase everything on the Draw control, or simply draw over the existing image. This allows you to do real-time animation, simply by calling all the drawing commands before calling Display to update the control, and Blank between each frame of the animation. Note that Blank does not take effect until Display is called.

A typical usage of the Draw methods would be:

!--- Call draw methods and call Display() to display the result
Drawer.Blank()            ! Blanks image control
Drawer.SetPenColor(COLOR:Red)
Drawer.Ellipse(1, 1, Drawer.width, Drawer.height, COLOR:Green)
Drawer.Display()        ! Redraws image control with new contents

This would display an ellipse with red line and a green fill that is the width and height of the Draw control.

You can draw to any image control on a window or a report, however when drawing to a report, you need to call the Clarion SetTarget(Report) function before calling any Draw methods. You can call SetTarget() with no parameters to make the current topmost window the current target. See the section on Using Draw on a Report

There are a number of examples in your \Clarion\Examples\Draw4 directory. The examples are a great way to get started and see a few of the ways you can use CapeSoft Draw. Draw ships with the following examples:

JumpStart	The result of following the JumpStart section. Th most basic example of how to use Draw. The ABC version is called QuickDraw.app, the Legacy version is QuickLegacy.app See JumpStart for more details.
3Dmap	The 3D map example uses Draw to create really cool 3D maps, with a number of shading and display options. The app file is /examples/Draw4/3DMap/map.app
pattern	Pattern.app is both an example and a useful tool. It creates a patterned fill that is used to fill a rectangle. It also displays the pattern string that can be used within your source code. See the Pattern section for more information.
Demo	Draw 2.10 ships with a new Demo application that is a great place to get a feel for some of the things that are possible to do quite simply using Draw. This application demonstrates all the basic functions in Draw as well as some neat effects like drop shadows, pie slices, shaded bars etc.
Draw Layers	The new Draw example application that ships with Draw 2.00 and later. Allows you to Draw to an image control and shows off a few of Draw's layer features.
DrawImage	This example utilizes the Clarion FreeImage template (available from www.clarionfreeimage.com) to save to different file formats and to read images from different file formats. You must have downloaded and installed the Clarion FreeImage template in order to compile this application

Draw provides a Log() method to assist in debugging your Draw applications. This method outputs a string to the windows debug output, all output can be viewer using the free DebugView application from www.sysinternals.com. DebugView can also be used to view any error message that Draw might encounter, even is Draw.suppressErrors = 1. In order to use the build in logging in Draw you should set the Draw.logging property to 1. Any error that a Draw method encounters will then be sent to the debug output. This has the advantage of allowing debug output to be viewed regardless of whether the app is compiled in debug or release mode. It also allows debug output with affecting the program execution, and allows debug logs to be saved. You can view both your own output (using the Log() method) and Draw's output using Debugview, in addition DebugView can be used for producing log files for other CapeSoft products, such as File Manager 3 and NetTalk.

Unknown template type. Activate ClarionFreeImage - You are trying to compile/load a draw application that uses the Clarion FreeImage template. This is an independent template available for free download from www.clarionfreeimage.com which you can use to add additional functionality to Draw (like loading and saving images from/to jpg, and other common graphic file formats).

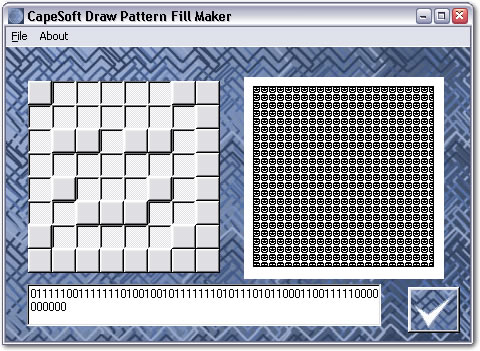

Versions from Beta 7 and later include the Draw Pattern Fill Maker, an application which allows you to easily design your own patterned fills with an easy to use graphical interface. See the Setfill() method for more information on pattern fills. To use the Draw Pattern Fill Maker, simply compile the pattern.app that ships with Draw. The files that you need are:

pattern.app - the app file
about.jpg, back.jpg and tick.jpg - image files used in the app
pattern.ico - the application icon

These files are installed in your Clarion directory under 3rdparty/examples/pattern

Simply open pattern.app in Clarion, compile it and run it.

To create a pattern click on the boxes on the left, you will see the resultant pattern in real time on the right of the window. To use the pattern in your clarion app, copy across the string displayed in the text box at the bottom of the window. You can use a variable to store the string, or simply pass it as a string, for example:

Drawer.SetFill('0000000010101010000100011010101000000000101010100001000110101010')

Each pattern is a 8x8 block of pixels that is tiled as necessary to cover the entire fill area, hence the string is 64 characters long, a 1 (one) represents a pixel to filled with the current color, while a 0 (zero) represents a pixel that remains untouched.

See the Setfill() method for more information on pattern fills.

Draw supports the same command on reports as it does on windows, however reports do differ in some ways. When calling Clarion's drawing functions to draw to a report it is necessary to call SetTarget(Report), similarly Draw requires that you call SetTarget(Report) before calling any Draw methods that will draw to the report. When you are finished you can call SetTarget() to set the current target to the last window opened on the current thread. See the Clarion documentation on SetTarget() for more information.

Populating the Draw control on a report is identical to populating it on a window, simply place an image control on the Report and select the "DrawR - CapeSoft Draw Control" template list under "Class Draw - CapeSoft Draw Template" when populating it. The "R" on the end of "Draw" in the template name signifies that it is the Report template control.

When drawing to a report, you will most likely want to increase the resolution when you are drawing (unless you like big pixels and jagged edges of course), as printing is generally done at a much higher resolution than your monitor might display (most screens typically display 96 DPI or less, whereas most desktop printers will print at at least 200DPI, and possibly considerably higher.) So how do we increase the resolution of the Draw control so that our printed reports look really good?

Firstly add the following data to the report procedure:

resized                byte

Then, in the source code for the report procedure, directly after the call to PARENT.Open() the Draw template would have populated the following code:

  SetTarget(report)
  drawer.Init(?Draw)
  SetTarget()

When you would like to draw to the report:

  SetTarget(report)
  drawer.SetPenColor(color:green)
  drawer.SetFontColor(color:red)
  drawer.SetPenWidth(1)
  drawer.Blank()
  if resized = 0                ! checks if the image control should be resized
      drawer.Resize(drawer.width*4, drawer.height*4)
      resized = 1
  end

Once you have finished drawing to the report call SetTarget(), this will set the target back to the last window.

That's it, you can now Draw to reports with high resolution Draw controls. Bear in mind that you should multiply the size of anything that you draw by the amount that you multiply the Draw buffer by (in this case four). If you don't you will get a tiny version of whatever you are drawing in the bottom left corner of the Draw control, this is simply because each pixel is taking up 1/16 (in this case) of what it was taking up before we resized the buffer. For example if we draw a box before the resize: Draw.Box(10, 10, 100, 122, color:red) we should modify the call to Draw.Box(40, 40, 400, 488, color:red). If you are going to be changing the resolution frequently, or allowing the user to specify the resolution you should probably create a variable to store the multiplication factor.

For example the above code to resize the control and draw a box would become:

resMult            long

    resMult = 4
    if resized = 0
        drawer.Resize(drawer.width*resMult, drawer.height*resMult)
        resized = 1
    end

    drawer.Box(10*resMult, 10*resMult, 100*resMult, 122*resMult, color:red)

The call to Draw.Resize() sets the size of the Draw buffer to be 16 times larger (four times as wide and four times as high). You can experiment with a multiplication value that suits you, the higher the value, the higher the resolution, but obviously the more memory you will use.
In order to reduce the amount of memory used by high resolution Draw controls on reports, as well as provide a significant speed improvement, you can use 256 colour drawing. See the section on Init256() for how to draw in 256 colours on a report.

It is also useful to be able to change the font size on reports, especially at higher resolution. To do this you can simply set the Draw.fontZoom class property. The fontZoom property defaults to 1, to increase the size that the fonts draw, increase fontZoom. In the example above we increased the resolution by a factor of 4, so we can set the fontZoom property to 4. When you increase the fontZoom factor, it allows you to use the same point size at higher resolutions. See the Show() method for more information.

A note on printer and monitor resolutions:

A fairly reasonable heuristic (rule of thumb) for estimating the needed resolution of an image for printing is to simply divide the required printer resolution by 4. So for a 360DPI inkjet, a 90 DPI image will print reasonably well, for a 720 DPI inkjet you should use around 180 DPI. More resolution will generally give you a crisper printout and fewer jagged edges (to a point, the resolution is limited by the printer capabilities). The default resolution of the Draw control is 72 DPI.

This template is copyright © 2024 by CapeSoft Software.  None of the included files may be distributed. Your programs which use Draw can be distributed without any Draw royalties.

Each developer needs his own license to use Draw. (Need to buy more licenses?)

This product is provided as-is. CapeSoft Software and CapeSoft Electronics (collectively trading as CapeSoft), their employees and dealers explicitly accept no liability for any loss or damages which may occur from using this package. Use of this package constitutes agreement with this license. This package is used entirely at your own risk.

Use of this product implies your acceptance of this, along with the recognition of the copyright stated above. In no way will CapeSoft , their employees or affiliates be liable in any way for any damages or business losses you may incur as a direct or indirect result of using this product.

For the full EULA see https://capesoft.com/eula.html

Download latest version here


Version 4.36 (5 February 2024)

• Update: QrCodeGen DLL was compiled in debug mode, which did not load on all computers. Recompiled in release mode.

Version 4.35 (31 January 2024)

• Add: Draw QR Codes
• Add: Start method to Drawclass
• Add: Optional Report parameter to DrawClass.INIT method
• Add: Standard Examples (ABC, Legacy)
• Change: ,VIRTUAL added to all DESTRUCT methods.
• Internal: Updates to TRACE method

Version 4.34 (10 November 2023)

• Fix: When writing text in indexTransparency mode, the background was not transparent.

Version 4.33 (18 July 2022)

• Fix: DrawGauge: Control did not like resizing if CenterRadius = 0 or CenterColor = color:none

Version 4.32 (10 June 2021)

• Fix: Set ResetPending to true for gauge widgets on dashboard when widget is initialized.

Version 4.31 (31 May 2021)

• Fix: Text was not drawing with anti-aliasing correctly. (Undid fix introduced in 4.29)

Version 4.30 (21 May 2021)

• First Clarion 11.1 install
• Update: Updated DrawGaugeWidget extension to support iDash 1.20.

Version 4.29 (14 February 2021)

• Fix: Anti-Aliased text, in horizontal mode, on an IndexTransparency layer, did not work.

Version 4.28 (9 November 2020)

• Mitigation: Some mitigation for a File-Already-Open error when calling LoadIcon hundreds of times in quick succession. Does not remove the problem, but limits it's occurrence, and impact. Use of icon resources as an alternative approach is recommended.

Version 4.27 (3 November 2020)

• Fix: ShadeBox could end up with a black border if highlight was too close to the edge.

Version 4.26 (2 November 2020)

• Fix: SetFill could Index-out-of-range
• Fix: Icon file could be left open

Version 4.25 (22 September 2020)

• Fix: GrabScreen would fail if the window co-ordinates were < 0,0

Version 4.24 (21 September 2020)

• Fix: Renamed LightGrey equate used in one of the gauge methods to avoid compiler warning.

Version 4.23 (16 September 2020)

• Fix: The template did not like the class being anything other than DrawClass.

Version 4.22 (7 September 2020)

• Change: Then name of the class has changed from DRAW to DrawClass. See What's New for more details on this.

Version 4.21 (24 Feb 2020)

• Add: LoadIcon and GetIconHandle methods look for icon in current directory - if not there then exe directory.
• Add: SnapToGrid ability (for RightReports) - used by additem and takedragevent.
• Fix: DrawPaint (for RightReports) - selecting a control in the editor was not always accurate if 2 controls where side by side (for resizing purposes).
• Fix: DrawPaint Init does not override gridwidth, gridcolor and gridstyle if set prior to init method.

Version 4.20 (13 Sept 2018)

• Add: Clarion 11 to install.

Version 4.19 (24 July 2018)

• Change: Conditional Compile, _DRAW_=>1, is added to the project if DRAW is included in the app (and not disabled.) This allows code dependent on Draw to know that Draw is available.

Version 4.18 (12 June 2018)

• Fix: Template error Unknown variable %Icon

Version 4.17 (27 February 2018)

• Fix: If global icon for header was set to variable, it incorrectly added the variable to the project.

Version 4.16 (16 February 2018)

• Add: Support for Clarion Runtime Translator Class for Draw Headings
• Add: DLL's added to ship list
• Update: Cape templates updated to version 4.11

Version 4.15 (20 December 2017)

• Fix: DrawPaint: DrawItems did not pass Transparent to call to DrawItem.

Version 4.14 ( 14 December 2017)

• Fix Regression: Additional Inc files were not exported from Data DLL.

Version 4.13 ( 28 July 2017)

• Fix: Uncommented Class tab in Gauge control template.

Version 4.12 ( 28 July 2017)

• Updated: Updated to use Cape.Tpw's version 4.10 (Additional Inc Files)
• Add: Add DrawHeader.OverrideSettings method
• Add: DrawHeader: Set Class Name template setting.
• Add: Document on globally overriding DrawHeader class.
• Fix: Drawheader Font test was backwards, Makeover before AnyFont.
• Fix: Auto Draw Header didn't set default Text Offset correctly.

Version 4.11 ( 3 October 2016)

• Fix: When resizing from a large to a small image, where the images have different height, the bottom (not top) of the old image would be preserved.

Version 4.10 ( 16 September 2016)

• Add: Support for loading 1bit BMP images.
• Fix: Possible GPF in DrawImage routine

Version 4.09 ( 1 September 2016)

• Fix: drwSystemColor is declared in DrawAPI, but was not included in 4.08 build.
• Fix: an old StringTheory.Clw was shipping with the Draw install. If you installed any version from Draw 4.03 through Draw 4.08 the reinstall StringTheory again please.

Version 4.08 ( 31 August 2016)

• Add: System color support to color method.
• Fix: Regression in 4.07 with control resizing.

Version 4.07 ( 29 August 2016)

• Optimize: Draw.Resize short-circuits if the size is not changing.
• Fix: Image would move with self.ResizeLayer(1) call.

Version 4.06 ( 4 August 2016)

• Change: Classes tab on Gauge Widget extension removed. Uses the Class settings for the Widget procedure instead.

Version 4.05 ( 9 June 2016)

• Add: Support for "Tips" on Dashboard Gauge widgets.
• Add: ParentRegionControl property to widget.
• Fix: diReadImage could GPF if px or py parameters were < 1.
• Fix: Draw 4.04 install mistakenly included a StringTheory.clw file.
• Change barcode.dll copied to application folder, loaded at runtime if using the Draw barcode functions.

Version 4.04 ( 26 May 2016)

• Fix: Warning "Layer: Duplicate Label" in draw.clw

Version 4.03 ( 3 May 2016)

DrawGauge

• Add: Virtual method, DrawCustomBackground

DrawImage

• Change: InitDrawImage method called automatically from diReadImage, diWriteImage
• Fix: Return values from diReadImageToBuffer were incorrect.

DrawPaint

• Add: Angle property to DrawPaintItemQueueType
• Add: Transparent color passed to item, when item is a image.
• Add: Angle property passed to diReadImage in DrawItem when the item is a Image.

Version 4.02 (26 April 2016)

DrawGauge

• Removed Layer warning

Version 4.01 (25 April 2016)

DrawGauge

• Renamed the "Center Offset" to "Center Radius".
• Renamed "CenterLayer" to "TopLayer". Moved to DrawGauge class.
• Removed unnecessary parameter from DrawTickLabel method.
• Documentation expanded and updated.

Version 4.00 (22 April 2016)

• Added DrawGauges.

Version 3.57 (15 September 2015)

• Fix to header if shading was not set to anything (global value should be used.)

Version 3.56 (10 August 2015)

• Better support for Resizers with Auto-Headers.

Version 3.55 (25 February 2015)

• Installer supports Clarion 10.

Version 3.54 (16 January 2015)

• Better support for ResizeAndsplit in DrawHeader class.

Version 3.53 (22 December 2014)

• Do not add Auto DrawHeader extension to Widget procedures.
• Remove ObjectName and lhClassName parameters from LocalAutoHeader extension.
• Added calls to %SetUseVersion to Resize #ATs.

Version 3.52 (16 December 2014)

• DrawHeader.Init method had a different property name to Draw.Ini, which caused an embed point to be duplicated.
• Add Decide method to DrawHeader class. (return FALSE to suppress the header.)

Version 3.51 (7 November 2014)

• More support for suppressing "empty" icons from project.

Version 3.50 (22 September 2014)

• Suppress "empty" icons from project.

Version 3.49 (11 July 2014)

• Draw Headings allow settings from AnyFont and Makeover to be used as default values.
• Icons used by Headings are automatically added to the Project.
• Fix: Bug in DrawHeader where Icon would sometimes not display at all.

Version 3.48 (19 June 2014)

• Automatically copy zlib.dll, freeimage.dll and cs_libpng.dll to application folder when compiling.
• Work-Around: Apps being upgraded from earlier versions are changing BarHeight from -1 to 0.
• Add: Auto-Draw-Header detects existence of manual header in a procedure, and disables itself.

Version 3.47 (10 May 2014)

• Experiments with anti-aliased curve.

Version 3.46 (21 January 2014)

• Clarion 9.1 build

Version 3.45 (7 January 2014)

• Add: New Method: SetFont

Version 3.44 (3 January 2014)

• Add: New Method: Flood (and internal method _flood)
• Add: New Method: FindPixel
• Add: NewMethod: RoundRect
• Change: PutPixel Method takes optional Layer parameter. (implemented as new method for performance reasons.)
• Change: Show method multi-layer anti-aliased text optimization removed.
• Change: HasAlpha method returns the number of the Alpha layer. In the past it always returned 1 if the alpha layer existed.
• Change: New parameter pQuad added to Ellipse method.
• Internal: _NormCoords method name changed to NormalizeCoordinates
• Fix: ShowLayer took a parameter, but did not use it.

Version 3.43 (17 December 2013)

• Add: ResetDisplayArea called in INIT method.
• ASSERTS added to code to ensure DataStore is open before being used.

Version 3.42 (13 September 2013)

• Refactor: Options on Global extension and Local extension reorganized.
• Change: When DrawHeader control dropped on a window then it automatically positions at 1,1 not where the mouse is.
• Add: Template option to set Icon Size for the Icon in the header.
• Add: Activate Auto Headers global extension.
• Add LocalAutoHeader local extension.
• Add: HeaderHeight property to DrawHeader class
• Add: SetWindow and SetTextY methods to DrawHeader class

Version 3.41 (18 July 2013)

• Add: Create:Arc added as a supported drawing item to the DrawPaint class.
• Add: StartAngle and EndAngle added to the ItemQueue properties - used by the new Arc type.
• Add: Trace method to send debug information to debugview.

Version 3.40 (5 July 2013)

• Fix: Resize support in Header template could cause the program to GPF.

Version 3.39 (7 June 2013)

• checked template support to make sure all generated code is excluded if "Disable Draw" or "disable Draw Object" is on.

Version 3.38 (23 May 2013)

• Update: Implement 4.02 of cape templates.
• Fix: Set DrawLinkMode and DrawDllMode correctly in Multi-Proj projects.

Version 3.37 (11 May 2013)

• Fix: GEN: Unknown Variable '%lhNoDraw'

Version 3.36 (30 April 2013)

• Updated Install to detect Clarion 9.

Version 3.35 (14 March 2013)

• Changed to Ver4 object/template management system. IMPORTANT READ THIS.
• Add: support for Multi-Proj in C8

Version 3.34 (11 February 2013)

• Fix: LoadIcon method copes better with 16 bit screen depth, and 32 bit icons with no alpha channel.

Version 3.33 (21 January 2013)

• Fix: DrawPaint class did not set the PenWidth before drawing ellipses and circles.

Version 3.32 (6 November 2012)

• Implemented: Cape01 template format.

Version 3.31 (23 October 2012)

• Fix: LoadImage method could hang when loading an icon for a DrawHeader.

Version 3.30 (12 July 2012)

• Template rework of Object and Export generation.

Version 3.26 (24 May 2012)

• Fix: (regression) Errors caused by DrawHeader fixed.

Version 3.25 (23 May 2012)

• Fix: All methods exported from Data DLL.

Version 3.23 (12 April 2012)

• Fix: Polygon, FillPolygon methods. Handle case where ymin = 0 and no edges with y > 0.

Version 3.22 (14 December 2011)

• Required for Insight Graphing 2
• Added: Length3d method returns the length of the vector in 3D space.
• Added: Normalize method normalizes the passed Vector.

Version 3.21 (24 October 2011)

• Required for Insight Graphing 2
• Fixed: MouseX and MouseY methods returning values offset up to the width of the scroll bar when the Draw canvas was larger than the control and a scroll bar was used in only one direction (either horizontal or vertical, but not both) and the scroll bar was used to change the position within the control (at full scroll the mouse coordinate would be offset by the width of the scrollbar which was not present).
• Added: MultiMonitors example application. Demonstrates listing all monitors, position a window on the primary display, opening a window on a new thread on the secondary display and setting it to full screen, and fullscreen animation and color calculation using Draw.
• Added: Fullscreen method which retrieves the monitor info for the screen that the window is currently on and resizes the window to the full size of the screen. See the "GoFullscreen" example application, which demonstrates creating full screen Draw applications without title bars window borders etc.
• Added: GoFullscreen example application (Clarion 6) which demonstrates creating fullscreen applications. Note that the code used in the example is included in the "HowTo" section of the documentation.
• Added: Multiple Monitors section to the "HowTo" section of the documentation.
• Added: LoadUser32 method loads all runtime loaded API functions required from User32.dll. This is called automatically the first time a method which requires the functionality is called.
• Added: ListMonitors method lists all monitors on the system
• Renamed: EnumFonts to EnumFontFamilies
• Fixed: Font enumeration was causing a GPF
• Added: Font enumeration to the Demo example
• Added: DRAW_DISPLAY_DEVICE type
• Added: DRAW_MONITORINFO type
• Added: DRAW_DEVMODE type
• Added: ListDisplayDevices methods lists all display devices

Version 3.20 (16 September 2011)

• Required for Insight Graphing 2
• Fixed: Max method returning the minimum value rather than maximum when three or more parameters where passed.
• Updated: Validated the behavior of the Min method.
• Fixed: RgbToHsv treating certain colors as grey, resulting in incorrect conversion
• Fixed: LightenColor not correctly lightening the color
• Fixed: Missing value clipping in LightenColor and DarkenColor
• Added: DarkenColor now supports both absolute and relative adjustments
• Added: LightenColor now supports both absolute and relative adjustments
• Added: LightenColor now does perceptual lightening rather than simply adjusting the HSV Value of the color - the saturation is proportionally adjusted for colors with a maximum lightness, resulting in the method behaving perceptually as expected.
• Updated: Saturate method calculation
• Updated: Desaturate method calculation
• Fixed: aaArc Anti-Aliased Arcs drawing with a "width" and "height" up to 1 pixels less than the correct sizes.
• Added: aaArc automatically falls back to the pen color if not explicit color is specified, and draws nothing if no color is passed and the pen color is COLOR:None.
• Added: aaArc returns without drawing anything if the penWidth is zero.
• Added: PieSlice, aaPieSlice, aaChord, aaBezier, and aaRoundRect now do not draw anything if a line only pie slice is specified and the pen width is set to zero (0).
• Added: _LineColor internal method.
• Removed: Deprecated WuLine method.
• Added: _PieLine method - draws a line only pie slice.
• Added: _ArcCheck
• Added: _ChordCalc
• Added: DrawChordCalc type
• Updated: Refactored _mArc
• Updated: Refactored _mThickArc
• Updated: Refactored PieSlice
• Updated: Refactored ShadeArcBand
• Updated: Ellipse and Arc parameter handling and coordinate normalization.
• Added: _PieCalcLines for calculating arc radials
• Added: aaShadeLine
• Fixed: PieSlice not supporting startRadius when the width and height of the base ellipse were the same (slice out of a circle).
• Fixed: Arcs drawing based on an ellipse that could be 1 pixels too wide and high (only affected non anti-aliased arcs).
• Fixed: Ellipses and thick ellipses drawing up to 1 pixel too wide or high (did not affect anti-aliased ellipses)
• Removed: Deprecated OldGrabScreen method
• Added: Improve PieSlice drawing
• Removed: endRadius from PieSlice drawing
• Added: _LineColor
• Added: _PieBorder. Draws the pie slice outline - can be used to draw line only pies, used internally for pie slice anti-aliasing, and can draw line on pie slices with shaded lines.
• Added: PieResetSlice
• Added: new aaPie method that takes a PieSliceType parameter
• Added: aaArc method now allows the start and end point values for the arc to the returned using the pStart and pEnd parameters
• Updated: Refactored aaArc to improve performance and reduce code and duplication (halved the number of if statements per pixel executed)
• Updated: Improved aaArc end point pixel accuracy
• Updated: Improved performances of aaPie and aaShadeArcBand methods.
• Updated: Improved the drawing of pie slices
• Added: LengthenLine which takes a width and height for a line and increments them by the passed amount while maintaining the line gradient and orientation (the line is lengthened).
• Added: Inc method increments the absolute value of the passed number by the passed amount (increment if the number is positive, decrement if it is negative)
• Fixed: Cylinder method drawing cylinder ends 1 pixels too large.
• Added: Partial support for cylinder anti-aliasing (the bottom edge is not anti-aliased in this release.
• Added: _ArcFill method draws an arc and fills the additional pixels (much like anti-aliasing but at full strength) to create a 2 pixel wide arc.
• Added: ColorPos method returns the color at a point in a given color range. The color range (or gradient) is based on a start color, end color and the distance between them.
• Updated: ColorRange method refactored
• Added: "ColorHandling" example application uses the new ColorPos method to create a "palette" of colors using four base colors. Requires CapeSoft StringTheory.

Version 3.11 (28 July 2011)

• Fixed: Typo in the Draw.inc on the _AddLayerOrder method (resulting in an unresolved for export error in multi-DLL applications).

Version 3.10 (28 July 2011)

• Fixed: Display method was using the maxLayer property rather than numLayers when looping through the layerOrder. This was causing a reduction in display performance. Optimized multi layer display performance.
• Fixed/Changed: Rewrote the InitLayer method to improve performance and eliminate issues with duplicate entries in the layerOrder array which would degrade display performance over time when using multiple layer.
• Added: _AddLayerOrder method which adds a new layer to the layerOrder array. This method is internal and is not expected to be called directly.
• Deprecated: The maxLayer property has been deprecated and removed.
• Added: Documented the SetDisplayArea method.
• Added: Document the ResetDisplayArea method.

Version 3.09 (21 July 2011)

• Fixed: Typo on the export name for the Captcha method (was being exported as Capatcha). This has no impact on application using Draw.
• Fixed: The ErrorTrap method being called when diReadImageToBuffer was called with a buffer that was intentionally too small (the method returns the required size).
• Added: handling for invalid layerOrder array values to prevent a potential GPF.
• Added: diWriteImage method for saving the image in almost two different file formats including JPEG, PNG, TIFF, BMP, ICO, PBM, Targa, JPEG2000 etc.
• Fixed: bug with the layerOrder array that caused duplicate layer entries when KillLayer and InitLayer were called multiple times for the same layer. This could result in a GPF or reduced display performance.
• Added: New menu system to the documentation, cleaned up links and added missing items to the menu.
• Updated: The DrawImage documentation. This is still a work in progress, see the DrawImage example application for an example of using DrawImage.
• New: Added an example of the new diWriteImage to the DrawImage example.

Version 3.08 (12 July 2011)

• Fixed: Typo in the template causing an unresolved external in multi-dll applications on the LinearEllipse method.
• Fixed: The MouseX and MouseY methods not correctly restoring the PROP:pixels setting for the window when PROP:Thous was non zero (restoring PROP:Thous to a non zero value clears PROP:Pixels).

Version 3.07 (11 July 2011)

• Updated: All examples applications have been updated and tested, including migrating older examples from Clarion 5.0 to Clarion 5.5. Removed all old examples which were extraneous, removed duplicate or deprecated files from examples, added manifests for all examples, correct missing templates or compile errors etc.
• Fixed: Ellipse drawing off by one pixel when the width or height were passed as negative values.
• Fixed: Shaded ellipses not drawing correctly with vertical shading.
• Fixed: ShadeLine method not drawing vertically shaded lines correctly.
• Added: _NormCoords method to provide consistent coordinate normalization
• Added: _ClipCoords to provided consistent coordinate clipping
• Fixed: Clipping of coordinates was allowing (0, 0) rather than treating (1, 1) as the origin
• Fixed: Clipping or coordinates allowing coordinates ending 1 pixel off the canvas
• Updated: Improved clipping and normalization of coordinates for patterned lines.
• Fixed: Additional pixel drawing on shaded vertical lines.
• Fixed: Shaded ellipses could draw the left hand side of the ellipse with a radius 1 pixel greater than the right hand side depending on the size and coordinates.
• Updated: Validated styled lines drawing coordinates.
• Updated: Refactoring clipping and normalization code for shaded and styled lines
• Fixed: Horizontal shaded lines filling 1 additional pixel.
• Fixed: Shaded vertical lines not shading (drawing as a solid color).
• Updated: Optimized and refactored _ErrLine method, removed extraneous code
• Added: New AntiAlias example demonstrates the new Anti Aliasing support in Draw.
• Updated: Removed additional extraneous files from examples and reduced installer size.
• Updated: Modified the Chord method to call Arc and removed duplicate extraneous code.
• Updated: Removed deprecated/unused _NewThickLine method
• Updated: Removed deprecated/unused _Thickness method
• Updated: Internal LinearEllipse method renamed to _LinearEllipse
• Fixed: MetallicCylinder not drawing the cylinder body with certain coordinates as the result of overly aggressive clipping.
• Updated: Removed the deprecated/unused Thick_line method.
• Fixed: Anti-Aliased ellipses drawing width incorrect coordinates (only affected the Ellipse method not direct calls to aaEllipse).
• Added: Anti-Aliasing to the Demo example application
• Updated: The code for the demo example to better demonstrate basic drawing.
• Added: Examples of clipping coordinates to the Demo example
• Added: A RandCoords routine to the Demo example that demonstrates generating coordinates within an area and clipping the result.
• Fixed: Removed extraneous debug logging.
• Added: New RandColor method that allows the lightness and saturation of the color being generated to be manipulated, as well as the amount of variance in the lightness of the color to be influenced.
• Added: Example of using the new RandColor method to the Demo example (see the Sphere drawing example).
• Updated: Removed the local RandColor function from the example application and moved all calls to the Draw.RandColor method.
• Added: Anti-Aliases edges to the Sphere method. Now supports smooth edge drawing when Anti-Aliasing is enabled (the Draw.antiAlias property is non zero)
• Fixed: Spheres potentially drawing 1 pixel too wide for some coordinates.
• Fixed: Icons drawing 1 pixels offset from the correct location.
• Fixed: Icons clipping the icon width by 1 pixel too many when the entire icon was not on the canvas and hence required clipping.
• Fixed: Icons drawing incorrectly when clipped as a result of the source icon scanline not be adjusted for each row of pixels in the icon, resulting in the next scanline beginning at the clipping position rather than the start of the next scanline in the icon (which resulted in a corrupted "skew" drawing of the icon).
• Updated: Verified icon clipped and coordinate adjusted for all coordinate cases.
• Updated: Optimize icon drawing to not process extraneous scanlines that would draw off the canvas.
• Added: New "Tests" tab to the main example. This demonstrates some additional method calls and also tests some of the Draw functionality.

Version 3.06 (28 June 2011)

• Fixed: A potential array index out of bounds when using 256 color drawing in the Display method (the palette could end up with 257 entries rather than 256).
• Fixed: Duplicate symbol compile errors in Clarion 8 on the LibPNG functions.

Version 3.05 (6 June 2011)

• Fixed: Fix the template generating the Init call twice for reports.
• Fixed: The template not generating the call to InitDrawImage on reports.

Version 3.03 (25 February 2011)

• DrawPaint - use only textvalue (for images as well). Deprecated ItemQ.ImageName property. If you get compile errors, use the ItemQ.textvalue property.
• Fix for RightReports - resizing fix. Don't resize < 0 (vertically or horizontally)

Version 3.02 (16 August 2010)

• Fixed missing Thick_Line in the export list, which would result in an Unresolved External error in multi-dll applications.

Version 3.01 (10 August 2010)

• Fixed incorrect name() attribute for the aaPolygon method.
• Removed the old HLINE@F4DRAW from the template exports.
• Fixed release date for 3.00 in the History.

Version 3.00 (4 August 2010)

• Changed the open mode used by the Image() method to open loaded images are read-only. This allows images to be read and displayed from locations that do not have write access.
• Added code to load WMF and EMF files (in progress)
• Fixed: GetDisplay() method was not always calculating zero padding correctly.
• Improved performance of horizontal and vertical lines that use line styles.
• Fixed lines drawing 1 pixel offset from the correct location.
• The Arc method now allows negative widths and heights
• Added anti-aliasing support (provides smooth edges for objects being drawn).
• Added .antiAlias property, when set to True, this will draw anti-aliased versions of objects where available.
  • Added aaPolyline method
  • Added aaRoundRect method
  • Added aaBezier method
  • Added the following internal methods (typically the .antiAlias property would be set to True, and these would be called automatically):
    • Added aaLine method
    • Added aaEllipse method
    • Added aaPolygon method
    • Added WuLine method
    • Added aaArc method
    • Added aaChord method
• Refactored code for clipping and coordinate calculation across all line methods
• Fixed various offset isses, where shapes were drawing offset by a single pixel.
• Fixed 45 degree lines drawing an extra pixel on one end in some cases.
• Added Dist method for returning the distance from one pixel coordinate to another.
• Added the Pos method to return the pixel position when given a pixel coordinate and a distance.
• Added a ConstrainCoords method that provides clipping and coordinate transformation.
• Corrected Polygon outlines, which could drawn 1 pixel short.
• Added anti-aliasing support to the standard methods when the .antiAlias property is set to True.
• Added a new AntiAlias example showing anti-aliases object drawing.
• New thick line drawing algorithm provides improved accuracy and initial anti-aliasing support (the algorithm for anti-aliasing thick lines will be improved in future releases).
• Fixed lines potentially missing a pixel in their center at specific angles and lengths.

Version 2.82 (30 December 2009)

• Fixed Unresolved External on _StringHeight when compiling in multi DLL mode in Clarion 7.1.

Version 2.81 (21 December 2009)

• Corrected external name for _StringHeight method, detected by linker in C71.
• Corrected indentation and quotes for Draw-Paint, Multi-Proj, Embedded cursors support.

Version 2.80 (29 October 2009)

• Fixed: diReadImage was not displaying images that were loaded from BLOBs as a result of a regression in 2.78 when image caching was added.
• DrawHeader:
  • New: ChangeIcon() method allows the icon to be changed at runtime.
  • New: .resizePercentage property allows the resize width of the bar to be adjusted. By default this is 100, which creates a bar twice as wide as the current width of the window, allowing the window size to be increased without having to redraw the bar frequently. Setting this to 0 always draws the bar the same width as the window, and values in between allow a balance between performance and appearance. We don't recommend values above 100, although there is no limit on the value.
  • Improved: Support for 16x16 icons on smaller header bars.
  • New: Support for Mike Hanson's resizing template.

Version 2.79 (16 September 2009)

• Fixed: DrawHeader: Template barheight now defaults to 5 in the template settings
• Fixed: DrawHeader: If the barheight field is blank, then no code is generated to override the barheight and the object's default height is used.
• Updated: DrawPaint class to provide additional functionality for RightReports

Version 2.78 (27 August 2009)

• Fixed: Exports for Multi-DLL applications. Fixes "unresolved external" errors.
• Added: diImageFromCache method to load an image cached by the call to diReadImage.
• Added: Enhanced functionality to diReadImage to support caching of images. Images are cached by default, unless the cache parameter is passed as 0.
• Added: draw:CacheBufferType data type to hold cached images.
• Improved: Clipping support for redrawing a specific area of the canvas (dramatically improves performance with animation and other frequent updates, where only a small area has changed):
  • clipRectX long
  • clipRectY long
  • clipRectW long
  • clipRectH long
  • clipRect long
• Added: Cache group to store use to cached images for rapid redrawing and reuse. Uses the draw:CacheBufferType group type to store each cached image. The maximum number of cached images is determined by the draw:MAXCACHE equate, which is 1000 by default.


Version 2.77 (14 July 2009)

• Fixed: The Polygon method was ignoring the numVertices parameter for line only polygons.
• Fixed: The Polygon method not supporting thick line widths for borders.
• Fixed: Thick line drawing was not always drawing the line widths correctly.

Version 2.76 (15 May 2009)

• Added: diReadImage now supports loading images directly from BLOBs.
• Added: Updated documentation, dynamic syntax highlight for code blocks, begun the documentation of the DrawImage methods.

Version 2.75 (6 May 2009)

• Fixed: DrawHeader template was not setting the bottom bar width.
• Fixed: DrawHeader template was ignoring the bottom bar shading if set to color:none
• Added: a DrawHeader.blurBar property that when set allows the bottom bar to be faded into the background along it's top edge. This was the default behaviour with previous version, however the new default is to draw the bar normally without any fading or shading into the background along its top edge.
• Added embeds to the DrawHeader initialisation for the Legacy template change, to allow the settings to be overridden (this functionality already exists in the ABC template chain).
• Added: New Documentation for DrawImage
• Added: New "HowTo Guides" document (currently a place holder for
• Added: New menu navigation system for the documentation
• Fixed numerous small errors in the documentation, expanded the documentation throughout.
• Added: Support for EasyResizeAndSplit with the Draw Headings template.

Version 2.74 (03 December 2008)

• Added Inited property. Is set in the init method, and kill is only completed if the inited property is set (reset in kill method).

Version 2.73 (01 December 2008)

• Fixed: DrawPaint disposal and cleanup, fixes the RightReports editor leaking memory when closed.
• Added: Small Clarion 7 template update.

Version 2.72 (10 November 2008)

• Clarion 7 compatible install.

Version 2.71 (13 October 2008)

• Fixed: Potential GPF in the Draw.Init() method because of invalid handling of an API return value. This was causing SendTo to GPF when using certain types of icons under Windows XP (Windows Vista was not affected).

Version 2.70 (12 September 2008)

• Added: DrawPaint:The user can now resize and object using any edge of the bounding box.
• Added: New resizing cursors for the above.
• Added: Additional bounds check in LoadIcon for icons that had invalid header information, that could potentially cause a GPF.
• Fixed: Error in LoadIcon where the allocated buffer was one byte smaller than it should have been, causing a potential buffer overflow with paletted (8 bit) icons where the AND mask of the icon had been padded onto a DWORD boundary.

Version 2.69 (30 August 2008)

• Fixed: Draw of layers with alpha transparency, where the layer was smaller than the canvas (baseLayer) and was position away from the origin. Layers with alpha blending were drawing with the y-coordinate inverted. This same issue also affected any layer copy done using CopyLayer() where the layer being copied was using alpha blending.

Version 2.69 (28 August 2008)

• Fixed: Template error that was not exporting GetMonitorInfo and GetWidowInfo in Multi DLL applications, resulting in an Unresolved External compile error.
• Added: DrawHeader: Both normal a delayed (late) init splits the Initialisation code into three sections, with an embed between each:
  1. Init Draw and DrawImage
  2. Add template settings code (if the defaults are overrriden)
  3. Call Display to render the control
  4. This allows the generated code to be easily overridden on a source level, or for additional code to be called before or after each stage of the initialisation

Version 2.68 (22 August 2008)

• Added: Draw.SetDisplayArea(). Limit the area redrawn when calling Display, and provides rapid refreshes when just a small area has been modified.
• Added: Draw.ResetDisplayArea(). Reset the area being displayed to the default (display the entire image).
• Added: Draw.MonitorFromRect(). Returns a handle to a monitor (display) when passed a rectangular area (for example if passed the coordinates of a window it would return which monitor that window is on).
• Added: Draw.GetMonitorInfo(). Returns the information about a particular monitor, including the pixel size, size of the work area (the area not obscured by the taskbar) etc. The result is stored in the passed draw_MONITORINFO group.
• Completed: Draw.GetWindowInfo(). The prototype has changed. This method now returns the information for the current window. The information is stored in a draw_WINDOWINFO group.
• Added: In the template. The ability to suppress the export of the draw object from a data dll.
• Added: Picture display functionality to DrawPaint.

Version 2.67 (02 July 2008)

• Fixed: A GPF in the Draw icon loading where if the icon was loaded from a resource using WinEvent to get the handle, and the size was specified, and the icon contained only a 4 bit (16 colour) icon, and was completely transparent (had no coloured pixels). This resolves an issue in SendTo.

Version 2.66 (03 June 2008)

• Changed: DrawHeader: The control is now populated with the width set to Full rather than a specific value.
• Fixed: DrawHeader: For a number of the prompts color:black was being ignored as if it was color:none
• Added: DrawHeader: The Local DrawHeader class override is blank by default, and unless it it filled in the global setting is used. If the global setting is blank then the default DrawHeader class is used. This allows the local setting to be overridden but still use a base class that is specified globally.

Version 2.65 (03 June 2008)

• Fixed: DrawHeader, the code was not being generated correctly if a variable was used for the Heading Text and Icon fields in the template.
• Fixed: DrawHeader, if the DrawHeader base class was overridden in the global settings then the custom based class setting would be ignored and the default class would be used.
• Added: Draw.Captcha() method, creates a "CAPTHCA" from a string, and optionally saves the PNG to disk with the file name specified. A CAPTCHA is a challenge-response mechanism that is intended to differentiate between a human and a computer. The current implementation is very simple, but will be expanded.
• Added: Draw.EnumProcessModules() method, which populates and array with the handles to all of the loaded modules for the current process.
• Added: DrawHeader can now use icons from any module, regardless of which DLL the icon is actually in.
• Fixed: DrawHeader template not populating the code for the x and y position of the text and icon.
• Changed: The EnumFont date types did not have the draw: namespace prepended.
• Changed: Merged two LOGFONT data declarations.
• Added: Module enumeration with the first instance of Draw that initialised. The handles to all loaded modules are retrieved and can then be used to load resources from.
• Changed: External function and API prototypes have been moved to the DrawAPI.clw file.
• Added: SetDisplayArea() method that allows a specific region to be updated without the entire contents of each layer being composited together for a display [BETA].
• Added: ResetDisplayArea() method. Clears the SetDisplayArea setting and allows the entire image to be refreshed when calling Display()
• Fixed: Drawheader: Incorrectly named properties of the class in template generated code (iconPostionX, iconPositionY and barColor).
• Added: DrawHeader: Bar shading support to the template so that the bar drawn at the bottom of the header can be shaded between two colours.

Version 2.64 (23 May 2008)

• Fixed: Old Draw Window Headings not being displayed properly because the old procedure is no longer used (the global option to use the old draw header template should be enabled until migration to the new template is complete. See the DrawHeader documentation).
• Fixed: Function called as a Procedure warning on compile.
• Fixed: Template generating the call to Init() twice which could result in the GDI device contexts not being created when procedures with Draw objects where rapidly opened and closed.
• Added: Logging and error checking code to the GDI initialisation, as well as font rendering.
• Fixed: Copylayer() inverted source and destination calculations. This could result in the copied section y coordinate being inversed, or the copied blocks being inverted.
• Added: Entirely new DrawHeader template
• Added: All DrawHeader settabtings exposed on the global template
• Added: DrawHeader template ability to use a different base class
• Added: DrawHeader local template to allow the global settings to be overridden
• Added: DrawHeader backward compatibility, and an option to use the old template by ticking the box on the global extension.
• Added: Documented all properties and methods in the DrawPaint Class, see the DrawPaint documentation.
  • New Methods:
  • AddItem(), AlignBottom(), AlignLeft(), AlignRight(), AlignTop(), CalcStringDims(), Construct(), CopyItems(), DeleteItem(), Destruct(), DrawHighlightBox(), DrawHighlights(), DrawItems(), FindParent(), HideHighlight(), Init(), InResizeCorner(), ItemClicked(), Kill(), MakeSameHeight(), MakeSameSize(), MakeSameWidth(), MoveItems(), PasteItems(), RedrawHighlightBox(), Reset(), ResizeItem(), SaveHighlightPos(), SetCanvasSize(), SetCursor(), SetGrid(), SortItems(), SpreadHorizontally(), SpreadVertically(), TakeClickEvent(), TakeDragEvent(), TakeDropEvent(), TakeEvent(), TakeResizeEvent(), WithItem().
  • New Properties:
  • CanMoveNow, canvasColor, CopyItemQueue, gridColor, gridEnabled, gridStyle, gridWidth, hDrawFactor, HighLight, ItemQueue, LockParents, Moving, Resizing, vDrawFactor, ZoomFactor, _control, _DeltaX, _DeltaY, _highlighted, _HighlightItems, _HighlightQueue, _items, _MultiClickCount, _nextId, _StartMouseX, _StartMouseY.
• Added: Documented the new DrawHeader class
• Added: Drawheader backward compatibility, the template now allows either the new or the old DrawHeader to use, and the setting can be set globally and overridden locally. Migrating to the new template should be transparent in most cases, except those where custom code has been added to the imported DrawHeading procedure. This code can now be moved to a custom DrawHeader class that inherits from the DrawHeader class, or the template can be used to modify the settings globally, with local overrides available. Both the old approach and new class based approach can be used in the same application by selecting the desired option for the particular control, and setting which should be the default on the global extension.
• Fixed: History documentation links were not working for entries that were created before the History was split into a separate document
• Added: Documentation for the new DrawHeader class and templates, migration information, descriptions of the template settings.
  • New Methods:
    • Display, Init, Resize, Kill,
  • New Properties:
    • displayText, textX, textY, blurSize, autoShadow, shadowOffsetX, shadowOffsetY, shadowColor, iconName, bgColor, bgColorEnd, shadeType, shadeDirection, highlightPos, highlightIntensity, iconHandle, iconX, iconY, iconSize, barStartColor, barEndColor, barHeight.

Version 2.63 (23 April 2008)

• Added: New DrawHeader class. This class completely replaces the old Draw Header template/procedure:
  • The local procedure is no longer required, and does not need to be imported
  • Does not create and destroy a Draw object each time the control needs to be drawn
  • Full control over the object setting using the DrawHeader object
  • More properties exposed at the template level (global template settings coming soon)
  • Fast, intelligent built in resizing. Add the SV resizing extension and the control will handle all resizing. No hand coded needed.
  • Shade background support,
  • No icon control is needed or created, loading icons from disk and resource is handled internally and directly.
  • DrawHeader is based on Draw and hence everything supported in Draw is supported in DrawHeader - making it fully customisable.
  • Automatic icon size selection based on the control size
  • Full backward compatibility - existing controls continue to work and provide upgraded functionality
  • New shaded
  • Automatic positioning if the height of the control changes (support for vertical resizing)
  • Automatically uses the correct icon if the height of the control changes.
  • Text is centred in the control based on the font sized used and the height of the bottom bar (if any).
• Fixed: Multi-DLL compile error with new methods.
• Added: Lighten and Darken example code to the DrawImage example, as well as a demonstration of the two supported modes for Greyscale conversion.
• Added: Built in icon loading from resource - WinEvent is no longer needed for this functionality.
• Added: GetIconHandle method to load an icon using the Windows API, which supports loading from file or resource (this is done automatically, the correct source is located), as well as loading any size icon and resizing icons to the specified size if the specified size does not exist.

Version 2.62 (16 April 2008)

• Added some new fields to the ItemQueue in the DrawPaint class: Clipped, FitWidth and FitHeight.

Version 2.61 (13 February 2008)

• Added: Support for both FreeImage 3.10 and later and previous releases. In FreeImage prior to 3.10 the topdown parameter in FreeImage_ConvertFromRawBits and FreeImage_ConvertToRawBits was being handled in reverse, and in 3.10 this was fixed - however this resulted in all images loaded by the DrawImage functions being upside down when the DLL from 3.10 or newer was used. This has now been handled internally so that both old and new versions of the DLL are supported.
• Added: New DrawImage example that shows some of the basic DrawImage functionality. This will be expanded, along with the DrawImage support itself. Also a DrawPaint example will be available for future versions.
• Fixed: Unresolved Externals when compiling in Multi-DLL mode
• Major documentation cleanup and reorganisation. Documentation is now split into logical sections, and the documents have been moved to XHTML and all formatting is CSS based.

Version 2.60 (25 January 2008)

• Added: GreyScale() method to convert a section of the control, or any layer, to Grayscale (256 shades of gray). Supports both linear conversion and perceptual conversion (which used a good heuristic to preserve the perceptual brightness that the human eye would see).
• Fixed: Image() method loading 256 colour (8bit) bitmaps incorrectly, the wrong bytes were being assigned to the RGB components and the byte order was shifted by one resulting in a "corrupted" image where the colours were incorrect.

New Documentation for the DrawPaint Class (work in progress, will be completely shortly)
New Document for DrawImage class (coming soon)
• Improved integration for FreeImage
• Included FreeImage in the installer
• Complete revamp the documentation, added missing methods, split the documentation into multiple documents and improved navigation and usability. There is now a separate Class Reference, as well as a separate Layers reference, FAQ, History etc.
• Added: PointInPieSlice() method - returns whether a point (x, y coordinate) is within the specific Pie Slice shape (a segment of an Ellipse). Typically used after drawing a pie chart using the PieSlice() method to check whether a user clicked within one of the drawn slices, and if so which slice was clicked in.
• Added: Additional BestFit() method that takes Longs instead of Ulong. This polymorphic method is just a wrapper for BestFit() and included for convenience.

Version 2.59 (06 December 2007)

• Added: New features to the DrawPaint class for RightReports.

Version 2.58 (30 October 2007)

• Fixed: 256 color bitmaps had an error in the bitmap header that set the size to 1 bytes smaller than the actual file size, which could cause a very small number of applications to not open the produced BMP. The only applies to 256 color BMPs being written to disk by writing the BLOB for the image control directly to disk.

Version 2.57 (25 October 2007)

• Added: Option in the global template to disable resizing for the DrawHeading control template.
• Added: The docs and example for the Barcode support (PDF 417) now reflect the fact that the barcode function returns a value that should be checked.

Version 2.56 (25 October 2007)

• Fixed: GPF when starting threads very rapidly with Draw controls (applies primarily to DrawHeadings). All static variables are now threaded.

Version 2.55 (18 September 2007)

• Added: Support for resizing when using the DrawHeader template. Please note that this has changed the DrawMakeHeadings procedure prototype and if you are using this template you need to import the new procedure into your application using the template utility (or by importing the TXA file).
  Important: When upgrading to this version of Draw please ensure you update your DrawMakeHeadings procedure by running the template utility.

Version 2.53 (23 July 2007)

• Fixed: Template issue causing a compile error in Multi-DLL projects and projects not using DrawPaint or DrawImage.

Version 2.52 (16 July 2007)

• Added support for Clarion FreeImage (free)
• Integrated Clarion FreeImage functions
• New DrawPaint class for creating persistent objects, allowing the user to select and manipulate the objects (picking) etc. This is an entirely new class that provides a whole new set of functionality (Capesoft WriteReports is an example of the type of functionality that this can provide). Full documentation will be included in future releases of Draw, along with example applications.
• Fixed a bug when using FreeImage support in the root DLL and not enabling it in the application. This only applies to Multi-DLL projects that use the FreeImage support in some apps and not others that import from an app that has a different setting. This should not affect any current Draw users as it only applies to a pre-release version of Draw.

Version 2.41 (29 March 2007)

• Update the Multi-DLL support in the template
• New Multi-DLL example
• Add a section to the document of using Draw (and Progress) in multi-DLL applications.

Version 2.41 (29 March 2007)

• Update the Multi-DLL support in the template
• New Multi-DLL example
• Add a section to the document of using Draw (and Progress) in multi-DLL applications.

Version 2.40 (14 November 2006)

• New property Draw.mirrorText allows the text to be flipped back to the right direction when using RTL text rendering and the window order is set to Right-To-Left.
• Fixed new font rendering:
  • Coordinate system was off by 1 pixel
  • ErrorTrap was being called even though the SetTextAlign function was succeeding.
• New font rendering using the .wholeString property now supports 90 degree text (rotation by an arbitrary angle to be added in a future release).
• Fixed problems with the new StrHeight method when used with the WholeString font rendering.
• Automatic directional rendering of Hebrew and Arabic characters when used in conjunction with the Window or Control RTL ordering.
• Fixed a bug when using the Draw header template with the Legacy (Clarion) template chain and the Window Resize extension that produced compile errors
• Correct documentation regarding the 3D datatypes Point2D, Point3D, Vector3D. Data type names had not been updated in the documentation.
• New support for MultiDLL applications, simplified to work simply by ticking the checkbox on the global extension to support using Draw in a DLL.
• New MultiDLL support in the template to assist Draw and Progress use in Multi DLL application
• Changed MouseX and MouseY to handle controls with scrollbars where the Draw image is larger than the control. Returns theDraw. MouseX() and Draw.MouseY() in pixels relative to the origin (top, left hand corner) of the Draw image, regardless of where it is scrolled or not.

Version 2.30 (29 September 2006)

• Fixed the unhandled case of an equals sign in BufferFont, equals signs where drawing as minus signs (a single bar instead of two). This resolved an equals sign being incorrectly displayed by the .Show() method.
• Template tweaks to support AnyFont for the WindowHeading control template.
• New string support for Complex Script Languages such as Arabic and Japanese, new font rendering properties and options, Right To Left reading order.
• Automatic whole string rendering of Complex Script languages.
• Automatic setting of Right-To-Left reading order for Hebrew and Arabic.
• Support for additional character sets, see the new document for the .fontCharset property and the new Show() docs.
• Updated Font related entries in the docs - see Show() method for more information.
• Add .useUnicode, .renderWholeStrings, .textAlignRTL and .ansiToUnicode properties to the class (.useUnicode and .ansiToUnicode to be exposed in the next release).
• Added initial support for Unicode, ANSI to Unicode conversion (see above, to be exposed in the next release).
• Additional documentation updated, more improved consistency, more links etc.
• New .Curve method supports smooth curve drawing between a set of points and uses the Draw .curveSmoothness and Draw.curveTension properties to allow the drawing to the modified. Uses Hermite curve interpolation.
• New ._ShowFull method
• New ._StringWidth and ._StringHeight methods
• Fixed a bug in the .WritePNG method that could result in the current layer being written to a PNG rather than the entire image.
• Fixed incorrect drawing of double shaded boxes when the intensity parameter was passed as zero.

Version 2.26 (10 July 2006)

• Changed the WriteBmp, WritePng, WriteLayerBmp and WriteLayerPng methods so that if the file exists it is deleted and a new file created for writing the image to.
• Fixed the Barcode method to handle barcodes where the number of columns in the barcode is a multiple of 8 (this was producing barcodes where each line "wrapped" onto the following and the barcode looked skewed to the side).
• Fixed drawing of Pie Slices where the chord of the arc that forms the outside of the slice had a width or height of zero (these were drawing as triangles rather than with curved arc edges).
• Uploaded missing images for the docs (HSV and RGB images).

Version 2.25 (24 November 2005)

• Fixes and improvements for all arc related methods (Arc, _ThickArc, Chord, Pieslice, ShadeArcBand, HalfEllipse etc.)
• Template changes for using Draw in multi DLL projects (Added "Export Draw Class from this DLL" option and "Use Draw that is exported in another DLL" option).
• Fixed StrLen method for vertical strings, fixed string first character positioning
• Fixed ShadeArcBand drawing one pixel out
• Fixed Pieslice drawing the "drop" section inverted for 3D pie slices.
• Documented PDF417 barcode functions and DLL.
• Grabscreen method now fully supports all options - it no longer grabs the entire screen, instead it now gets the specified section of the screen and places it at the passed coordinates.

Version 2.20 (17 November 2005)

• Added a Barcode method which draws PDF417 compatible barcode when passed a string containing the data for the barcode.
• Fixed drawing of shaded boxes a single pixel wide or high, where the pen width is set to greater than 1 (some types of boxes used the penwidth for drawing).
• Fixed StrLen method (was returning the incorrect pixel length for strings).
• Fixed font underlining (also now faster and uses no extra memory for underlined styles).
• Added support for loading icons from resources as well as disk for the LoadIcon method (Requires a handle to the icon resource, it is recommended that WinEvent be used to obtain the handle by calling the WinEvent function ds_GetHIcon()).
• Added support for all icon color formats for loading icons from resource.
• LoadIcon supports loading all icon formats from disk with the exception of 4 bit and 24 bit icons from disk (all icon formats for icon resource are supported. NOTE: Loading icons from resource requires a handle to the icon resource. Therefore WinEvent is recommended for loading icons from resources.).
• Fixed thick line clipping when the line ran along the edge of the drawing area.
• Improved thick line clipping to work on a per pixel basis.
• Fix problems on reports in Clarion 6.2, where setting prop:pixels and then restoring the value changes the value of prop:thous.
• Fixed very small pie slices.
• Added automatic bit depth detection for loading icons from resources.
• Corrected circles (Ellipse, _ThickEllipse, LinearEllipse, ShadeEllipse, HalfEllipse and Sphere) drawing 1 pixels left and up (many thanks to Brian Wigal for reporting this bug!).
• Corrected spelling and typographical errors in documentation.
• New HSV/RGB conversion methods - HsvToRgb, RgbToHsv, LightenColor, DarkenColor, Saturate and Desaturate.
• Add Min and Max methods -each take up to 10 parameters are return the minimum or maximum values thereof.

Version 2.15 (08 September 2005)

• Changed the HalfEllipse method to draw both half Ellipses and Circles (only circles were supported).
• Change the way the DrawStore.tmp file is created. This is a dummy file used by Draw. Each instance of Draw opens this file in Share mode, the file is never read or written to. The file is now created in the system temp directory, and the full path is used for the file name, this avoids problems when the system{prop:datapath} is set, and the file cannot be located when the file name is relative.
• Added an optional parameter to Polygon and ShadePolygon to allow a number of vertices to be specified, as well as the default of using all entries in the array for the vertices.
• Added support for shading to the HalfEllipse method, currently it supports linear shading, future versions will support other shading types.
• More updates to the docs, added more detail for methods such as Polygon and ShadePolygon, added new parameter lists and examples, as well as new style (parameters and example in tables), generally improved consistency, detail and layout.
• Fixed bug in the GetImagePixel method that returned the wrong color for the last row of pixels in the image.
• Added a PointInPolygon method that returns whether a coordinate passed is inside a defined polygon or not. This can be used to determine whether a user clicked in any area in the image control that can be defined by a polygon, or whether a user clicked on a particular polygon in the Draw control.
• Added SetFontMode to allow the font rendering mode to be set (anti-aliased, cleartype, non anti-aliased etc.).
• Added ImageFromBuffer - writes from a buffer that contains RGB data to a layer, allows the position of the image to be specified, along with the ability to clip the image and tile it both horizontally and vertically. Tiling in either direction can be specified independently.
• Added a BestFit method that returns the best proportional scaling when passed an existing width and height and the dimension that must be fit within.
• Added a ClarionToRGB method that converts a standard Clarion BGR color to an RGB color.
• Added a GetLastError function (not a member of the draw class, so it can be called anywhere in an app without a Draw object). This returns the last Windows API error code. This code can be passed to the Draw FormatMessage method, which produces a Clarion string containing the error message.
• Added a ToClipboard function that copies the Draw image to the clipboard. This function copies the visible contents of the control to the clipboard (so hidden layers etc. are ignored). The image is copied to the clipboard as a bitmap.
• When resizing and retaining the data, certain sizes could cause a GPF. This GPF was in the ResizeLayer method when copying the data from the old layer to the new layer, where the new layer was significantly smaller than the old one and the zero padding changed.
• Added support 256 color icons to the LoadIcon() method, fixed all issues with paletted icon transparency. The next release will add support for all other icon formats (1,2 and 4 bit paletted icons, as well as 16 and 24 bit icons). Currently both 8 bit (256 color) and 32 bit icons are supported. Windows XP style 32 bit support the full 8 bit alpha channel for transparency.

Version 2.14 (28 February 2005)

• Fixed GPF in the Blank() method when blanking the canvas to a color (rather than black or white) while the penWidth property of the class was greater than 1.

Version 2.13 (10 January 2005)

• Fixed template error in 2.12
• Added template option to allow Draw to be easily included in a DLL in multi DLL projects
• Added a DrawDLLMode define that the template automatically adds to the project defines (Clarion 5 needs to have this done manually). This allows the Draw to be compiled into a DLL and used from the DLL rather than compiling the Draw.clw file into every app in a multi DLL project. This define supports both Draw and Progress. See the What's New section for more information.
• Updated template to be consistent with new CapeSoft template style specification
• New AlphaCopy method improves performance, fixes alpha errors and a possible GPF.
• Added code to automatically create alpha channels when drawing text to a layer with an active alpha layer (still in testing)
• New DrawHeader template which uses a single layer instead of multiple layers and supports font anti aliasing
• Numerous updates to documentation
• Updated all example apps, totally revamped the main example app with numerous useful features, such as drop shadows and pie slices.
• Added HalfEllipse() method
• Fixed problems with Shaded object when a pen width and style had been specified.

Version 2.12 (05 January 2005)

• Internal release (not for public consumption).

Version 2.11 (04 January 2005)

• Added font anti-aliasing and rendering options (See SetFontMode).
• Added methods for enumerating all font on the system and populating a queue (See EnumFonts)
• Added a number of new internal Draw properties and equates for fonts.
• Fixed rendering issues with some fonts that truncated some letters.
• New examples, with numerous feature additions and more useful code (such as demonstrating drop shadows etc.).
• Added GetPixel method as an alternative name to GetImagePixel().


Version 2.10 (30 November 2004)

• Fixed clipping issues with boxes.
• Fixed a small memory leak where a Draw could exit without releasing GDI handles.
• Documented the numerous new methods that have been added, such as shaded ellipses and spheres
• Updated Draw header template to allow all settings to be modified on the properties page and to allow variables to be used as well as literal values
• New DrawHeader utility template for adding the DrawHeading procedure for both ABC and legacy.
• New Demo and Example applications, example application have been cleaned up and demonstrate the features
• DrawHeadings now allows icons in the current app to be specified, as well as icons in the application directory. See the Dynamic Header Template section for more information.
• New functions:
  • Blur
  • FileToString
  • GetDeviceCaps
  • Log
  • ShadeEllipse
  • ShadePolygon
  • Sphere
  • RadLine
  • StringToFile

Version 2.09 (21 April 2004)

• A number of internal fixes, an improved template and a large number of new features, which will be fully documented in the 2.10 update.
• New extension added to the template that allows Draw to dynamically create header with drop shadowed text on windows, simply drop the template on the window and enter text in the string (or even leave it blank which will use the window title). See the Dynamic Header Template section.

Version 2.08 (14 November 2003)

• Fixed GPF in Clarion 6 when writing to PNGs (threading bug).


Version 2.07 (04 November 2003)

• Interim release, fixes Duplicate label warnings with Clarion 6. Draw equates now have the 'Draw:' namespace identifier prepended to them.

Version 2.06 (20 August 2003)

• New Cylinder() method, and an additional cylinder method that allows new types of shading on cylinders.
• Fixed GPFs caused by accessing the 0th element of arrays.

Version 2.05 (31 July 2003)

• Only a single DrawStore.tmp file is created in the current Windows temp directory regardless of the number of programs using Draw that are run. (this file is always empty, and is never written to).
• Changed Windows Registry type equates to avoid duplicate label warnings with C6 EA 5.1.
• This release is the basic version required for CapeSoft Progress.

Version 2.04 (29 July 2003)

• Fonts: Fixed clipping, Font point sizes are now exact (previously they were an estimate that occasionally was somewhat inaccurate), Fixed font positioning, both vertical and horizontal. Note: You may notice that your fonts now display smaller than they were previously, the display size is now correct and uses the current screen resolution to calculate the exact pixel height of fonts.
• ColorRange() Method - returns a pair of colors on a range, given the start and end colors and the distance between them
• Added new example app (simpler and cleaner)
• Fixed shaded boxes that were 1 pixel too small when draw the same size as a layer.
• WriteBMP() and WritePNG() now correctly write the display buffer to disk rather than the current layer
• Added WriteLayerPNG() and WriteLayerBMP() to write just the current layer to disk.
• Fixed a bug in the WriteBMP() method that produced unreadable BMP's with large images by truncating the last byte.

Version 2.03

• Another massive update of the documentation, added examples and screen shots to all methods, added an info section with further useful information for each method, and links to related methods. Examples are now actual useful pieces of code that can simply be dropped in an app and compiled.
• Fixed penStyle applying to shaded objects.
• Fixed Highlight() method drawing off by a pixel (vertical).
• Image() method documentation updated and expanded
• Image() method supports tiling an image across a layer
• Polygons draw correctly when the current pen color is color:none
• The Polygon() Method has been modified, all the workarounds were removed and the original algorithm revised to work with all cases.
• Polygons are now faster as well as being consistent (no misdrawn pixels).
• Corrected misdrawn pixels at the end of very thin horizontal cylinders.
• ShadedLine() method shades a line between two colors in any direction (not just vertical or horizontal).
• Added ShadeEllipse() method
• Added ColorRange() method which determines start and end colors at two points within a color range
• Added versioning to the Draw template, templates which are dependant on Draw (such as Progress) now check for a sufficiently new version of Draw.
• Fixed problem with True Type fonts not displaying when ClearType was enabled under WindowsXP
• Changed layer display order, so that the first layer in the display order list is the bottom layer, which means that each new layer created is created on the top of the layer "stack".
• Fixed layers smaller than the the image control being draw from the bottom left hand corner rather than the top left hand corner.

Version 2.02

• Fixed a bug with with layer copying, which incorrectly positioned layers that were smaller than the baseLayer.

Version 2.01

• Added the call to UnLoadLib() for zlib in the Kill() method.
• Corrected an error in CopyLayer() that resulted in the last scanline being skipped.
• Corrected clipping for the HighLight() method (off by 1 pixel)
• Corrected small bug in the BufferFont() internal method. The bug did not affect any functionality.

Version 2.00 (Gold)

• Draw has gone gold!
• Added Layers, layer transparency, layer alpha channels, Hidden layers and layer drawing methods. See the section on Layers for more information.
• Added the GetWindowsColors() method to retrieve the current colors for the Windows interface.
• Added a layer data type and a layer array to store layers.
• Major revamp of the documentation, neatened and cleaned up existing sections, added a large number of new sections and clarified some of the more obscure sections.
• Added a layerOrder array to store the layer order independently of the layer storage order.
• Added the following methods for manipulating layers:


  Draw.AddAlpha	Add an alpha channel to a layer
  Draw.AlphaCopy	Copy a block of pixels from one layer to another using alpha transparency.
  Draw.CopyLayer	Copy a block of pixels from one layer to another.
  Draw.HideLayer	Set a layer to hidden.
  Draw.IndexTransparency	Set the index transparency of the layer.
  Draw.InitLayer	Initialise a new layer
  Draw.MoveLayer	Change a layer's display order.
  Draw.ResizeLayer	Resize a specific layer.
  Draw.SetMode	Set the display mode.
  Draw.Showlayer	Set a layer to be shown when Display() is called.
  Draw.SwapLayers	Swap two slayer's display order.
  Draw.ToAlpha	Copy one RGB channel from one layer to another.
  Draw.WithLayer	Activate a layer for drawing to.



• A number of bug fixes and large number of improvements have gone into this release.
• Cleanup up and corrected the template and template documentation.
• Added new examples, cleaned up old examples.
• Modified Init() and Kill() to allow the object to be dynamically created and Init() and Kill() called multiple times to re-initialise the object.
• Added a destructor to the class.
• Added a large number of tweaks and improvements, including insuring that old Draw programs continue to work flawlessly even though they now use layers.
• All example apps have been redone and a number of new examples added - see the examples section.
• Both libpng.dll and zlib.dll are correctly loaded at runtime, if the files are missing Draw handles the error.

Version 1.0 Beta 11a

• Added LoadIcon method to allow Windows icons (.ICO files) to be loaded (currently only supports WindowsXP 32 icons)
• Changed the Show method, if the font color was less than zero, the text would simply not be drawn, now the font color is set to black if it is less than zero.
• Added a HighLight method that allows a color to be XOR'd to turn a highlight effect on and off over an area.

Version 1.0 Beta 11

• Added Methods for 3D calculations (All method can be used for 2D calculations):
  • Cross Product
  • Dot Product
  • Scalar and vector multiplications
  • Scalar and vector additions
  • Perpendicular calculation
  • Distance from a line to a point
  • Equality checking between any two vectors or points
  • Scalar and vector subtraction
  • Check whether a point is on a line in 3D space
  • Intersection between two lines in 3D space(whether they intersect and where)
• PNGs produced by Draw are now compatible with all compliant PNG decoders.
• Draw now loads any DLLs at runtime (relevant for writing PNGs).
• Major revamp of documentation.
• The Image() method now supports a transparency color for BMP's.
• New data types for 3D calculations:
  • vector
  • point
  • line3D

Version 1.0 Beta 10

• A huge number of fixes and improvements since the last public release (Beta 7) too many to list individually.
• Fixed all polygon drawing issues, the polygon method is now robust and a little faster too.
• A whole pile of changes to the font handling, mostly bug fixes but some optimization issues too.
• Added Draw.fontZoom property to allow the fonts to be globally resized for high resolution reports and such.
• The Arc() method has been tweaked and improved, and a few rounding issues tidied up.
• 256 colour drawing has been implemented. This should be particularly useful if the image needs to be sent across a network, or if the 24 bit version is bloating a report excessively. See the Init256() method for details on using 256 colour Draw images.
• Resizing supports 256 colour bitmaps, and zero padding is now correctly calculated.
• Lots of code cleanup work has been done, so Draw should be cleaner and more consistent internally.
• Added a SwapBuffers() method that allows any bitmap buffer to be written to the image control.

Version 1.0 Beta 7

• Added global extension to allow PNG support to be disabled - with no PNG support it is not necessary to ship the zlib.dll file.
• Documented all the features of the Blank() method.
• Added patterned fills and the Draw Pattern Maker - pattern.exe, which allows you to create your own patterned fills with a graphical interface.
• Added the SetFill() method to allow patterned fills to be used.
• Fixed rounding error with MouseY() method.
• The Image() method did not support all the documented features. This has now been corrected.
• The Image() method now uses the top left hand corner as the origin, the same as all the other Draw methods
• Fixed incorrect drawing of 45 degree lines that were more than 1 pixel thick
• Alphabetised class methods in documentation and added new table for easier access.
• Fixed SetFontColor() method that was swapping R and G color components (Clarion colors treated as RGB instead of BGR)
• Numerous fixes to the Arc() method, particularly with thick arcs.
• Fixed vertical font clipping.
• Character font clipping implemented. Clips at the character level, so a character drawing off the edge of the control will only draw the section within the control and won't wrap. Previously the character was either clipped or not.
• SetPenStyle() handles incorrect style options by setting the style to the default.
• Blurry fonts when black font was drawn on white background fixed.
• Fixed vertical text not printing is the font color was < 0
• Added a fontStyle property to the class, see the Show() method for more details.
• Text had a slight vertical alignment error, this has been corrected.

Version 1.0 Beta 6

• Beta 5 was an incremental release and the documentation was not changed.
• Fixed issues with 45 degree lines (pixel popping).
• Optimised 45 Degree lines.
• Fixed boundary and clipping issues.
• Fixed an error in the line algorithm that sometimes drew lines 1 pixel too short.
• Fixed the Blank method, when clearing to colors other than black or white it would not clear the bottom row of pixels.
• Fixed Polygon drawing and filling.
• Horizontal Doubled shaded cylinders erroneously treated Clarion colors as RGB instead of BGR.
• Fixed the Show method, text now draws in the correct position.
• Fixed the StrLen method, which returned the number of bytes taken up by the individual color components rather than the pixel length of the string.
• Changed the WriteBMP method so that it is not necessary to have called Display at least once before writing to a BMP file.

Version 1.0 beta 4

• Changed the coordinate system to be more consistent across all draw methods, (1,1) is the top left corner (width, height) is the bottom right.
• Full thick line support for chords and arcs.
• Dramatically improved clipping.
• Full support for thick lines with pen styles (Clarion does not support this).
• Added Resize() method to allow the image buffer to be resized dynamically.
• Added StrLen() method to return the number of pixels any string will take up.
• Added GetDisplay() method to allow the data in the control to be copied back to the Draw buffer.
• Added GetDevicePixel() method to get the color of any pixel on the screen.
• Added GetImagePixel() method to get the color of any pixel in the Draw control.
• Added ShadeLine() method which allows horizontal and vertical lines to be shaded from one color to another.
• Added SetPenWidth() method to allow the penwidth member data to be set.
• Changed Image() method to allow the Draw buffer to be resized dynamically.
• Added ResizeControl() method to allow the control to be resized dynamically.

Version 1.0 beta 3

• Faster Double Shaded Cylinders
• Fixed GPF with MetallicShadedCylinder() after repeated calls.


Version 1.0 beta 2

• Full Support for thick lines
• Full support for pen styles (added SetPenstyle() method)
• Supports thick lined circles and ellipses (Clarion doesn't)
• Does not support filled chords
• Fixed bug which drew vertical lines in the incorrect colour
• Fixed GPF (General Protection Fault) on close with ABC
• Blank() method now clears to any colour
• GrabScreen() Method added to get a screen capture
• Resolved numerous small bugs and increased some methods speed
• All shaded cylinders and boxes now draw correctly in all directions
• Corrected cylinder lengths (cylinders would draw slightly too long)
• Updated demo apps for ABC and legacy.

Version 1.0 beta 1: Released

• does not currently support thick lines (except vertical and horizontal)
• does not support filled chords
• does not support pen styles
